Copertina ELEMENTO

Elemento

RATIO
16:9
BRIGHTNESS
1000 - 1200 NITS
MAINTENANCE
Front



Download the brochure

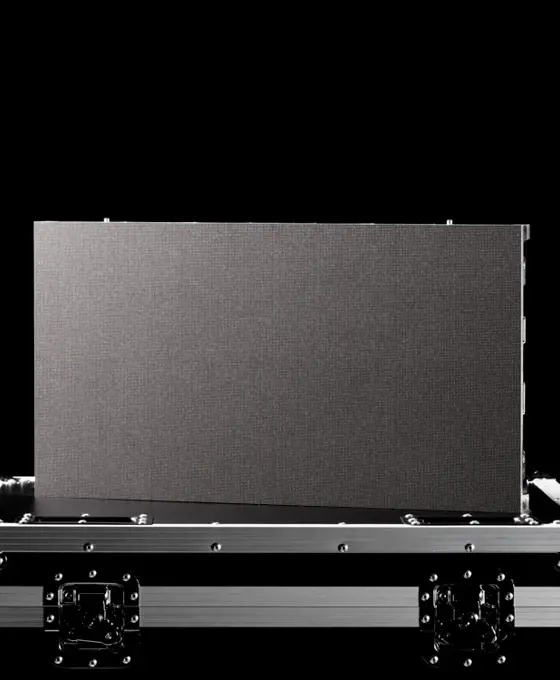

ELEMENTO is an LED screen capable of giving you an extremely engaging experience, guaranteeing accurate and detailed colour rendering. This allows for a feeling of total immersion.

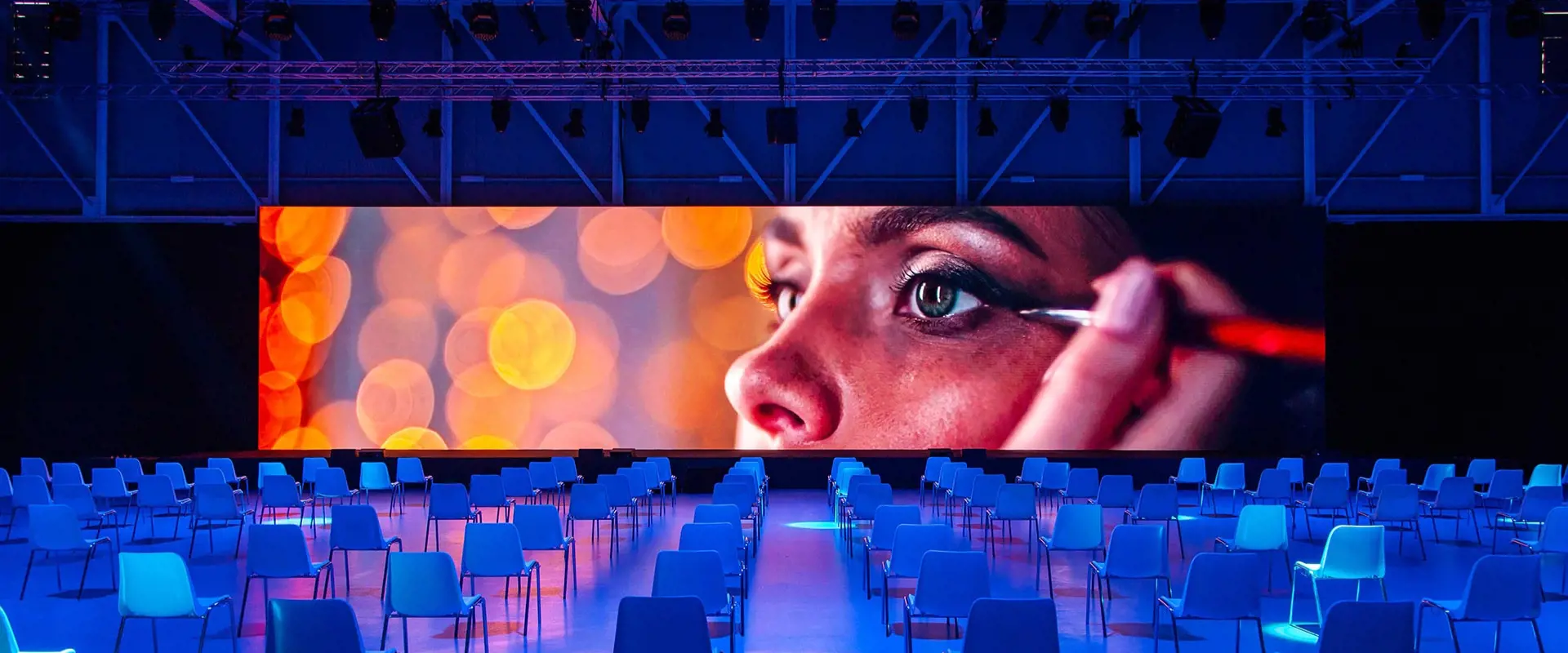

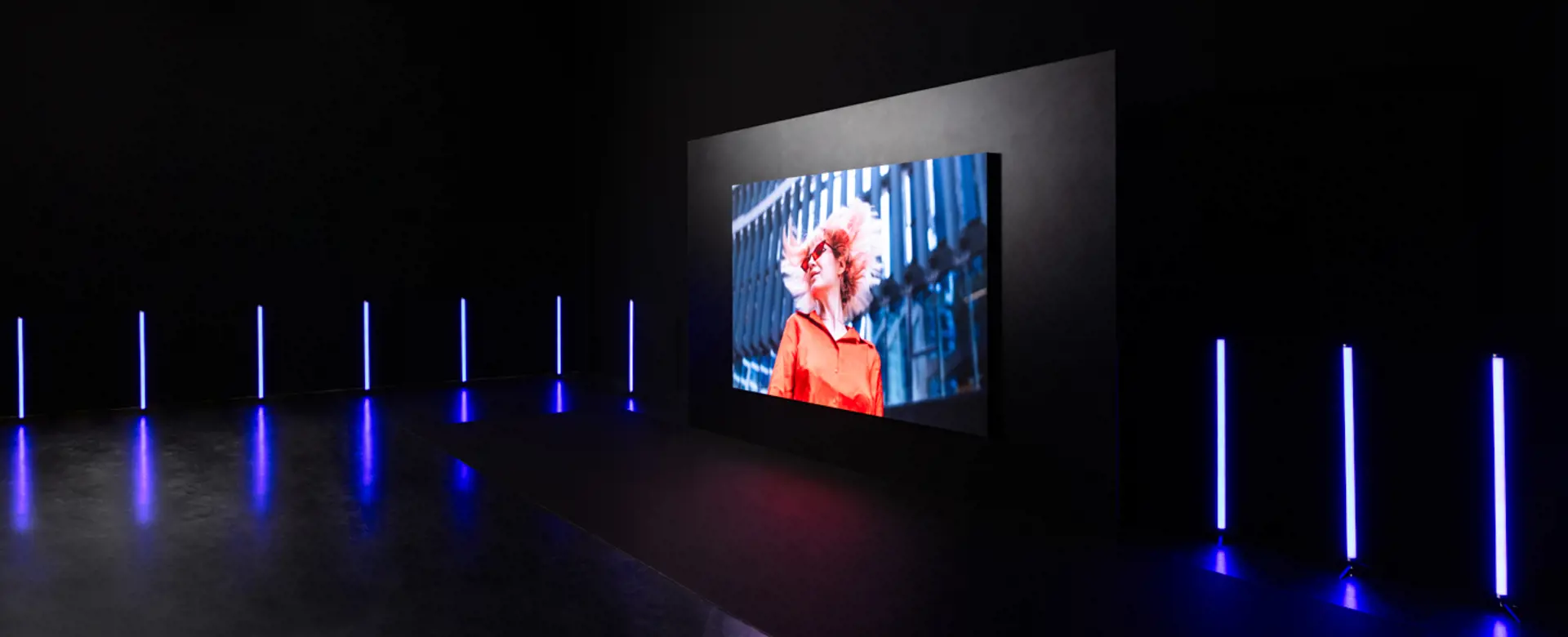

ELEMENTO is ideal for indoor applications in a business context, luxury showroom, meeting and conference room, television broadcasts and conferences.

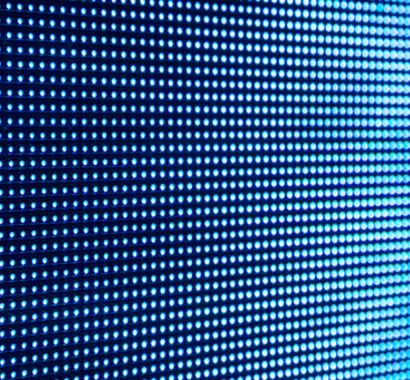

Thanks to the finest pixel pitch, in fact, the reproduction of the image and video on the screen will be characterised by excellent contrast and an amazing viewing angle.  This is a type of screen that is extremely versatile in use: easy to assemble and extremely robust, it easily adapts to being integrated into the design of the environment in which it will be positioned, giving it an unmistakable style.

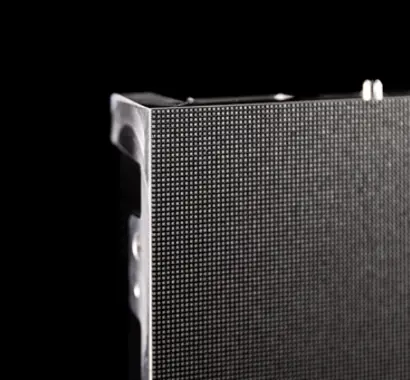

Ultra-slim design, ultra-light, modular frame with high-precision quick mounting system for perfect alignment.

Main features



Very high resolution





Ultra-thin modular

Adjustable brightness

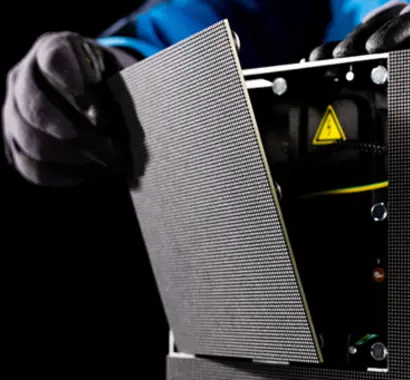

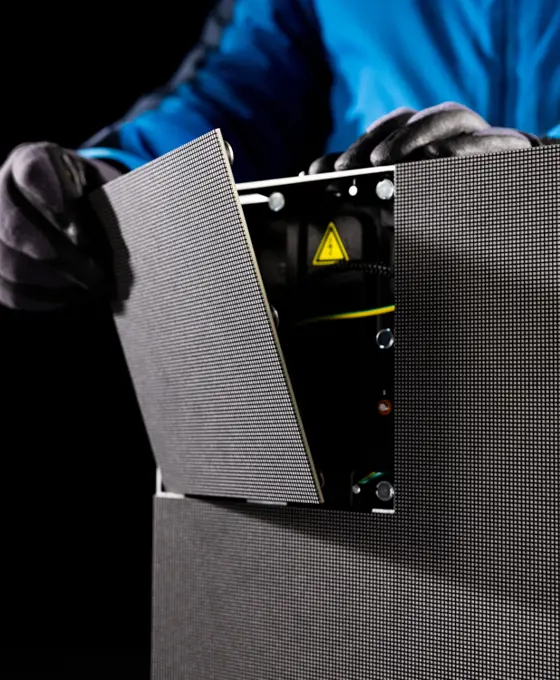

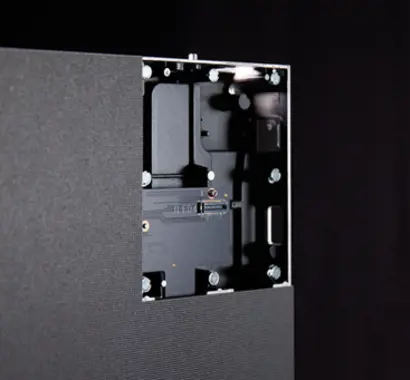

Full front maintenance

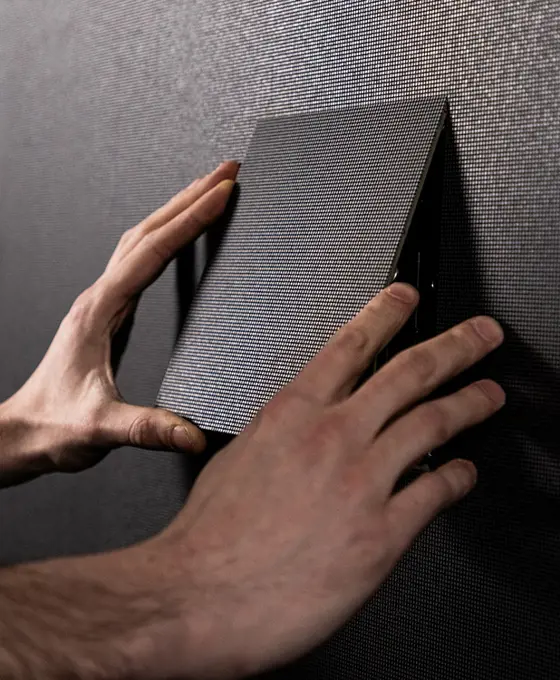

Rapid assembly

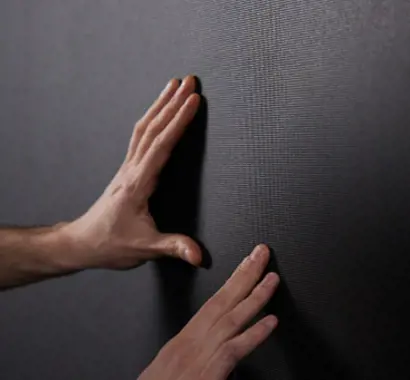

Perfect alignment

On-site, remote and cloud management

1 / 7

Technical data





Pitch

1.2

1.5

1.8

2.5

Technology

SMD Triad Led

SMD Triad Led

SMD Triad Led

SMD Triad Led

Cabinet size

600 x 337,5 mm

600 x 337,5 mm

600 x 337,5 mm

600 x 337,5 mm

Ratio

16:9

16:9

16:9

16:9

Cabinet resolution

480 x 270 mm

384 x 216 mm

320 x 180 mm

240 x 136 mm

Material

Die-cast aluminum

Die-cast aluminum

Die-cast aluminum

Die-cast aluminum

Weight

5,4 kg

5,4 kg

5,4 kg

5,4 kg

Thickness

50 mm

50 mm

50 mm

50 mm

Manteinance

Frontal

Frontal

Frontal

Frontal

Brightness

1000 Nits

1000 Nits

1200 Nits

1000 Nits

View angle (H/V)

160° / 160°

160° / 160°

160° / 160°

160° / 160°

Contrast ratio

5000:1

5000:1

5000:1

5000:1

Refresh rate

> 3840 Hz

> 3840 Hz

> 3840 Hz

> 3840 Hz

Power peak

600 W

450 W

375 W

345 W

Average consumption

200 Wh/m2

150 Wh/m2

125 Wh/m2

115 Wh/m2

Life span

> 100.000 hours

> 100.000 hours

> 100.000 hours

> 100.000 hours

IP rating (front/rear)

60/60

60/60

60/60

60/60

Illuminate your brand

Through Wave&Co LED screens you can offer your customers a #beyondimaginable vision experience.



Contact us for further information

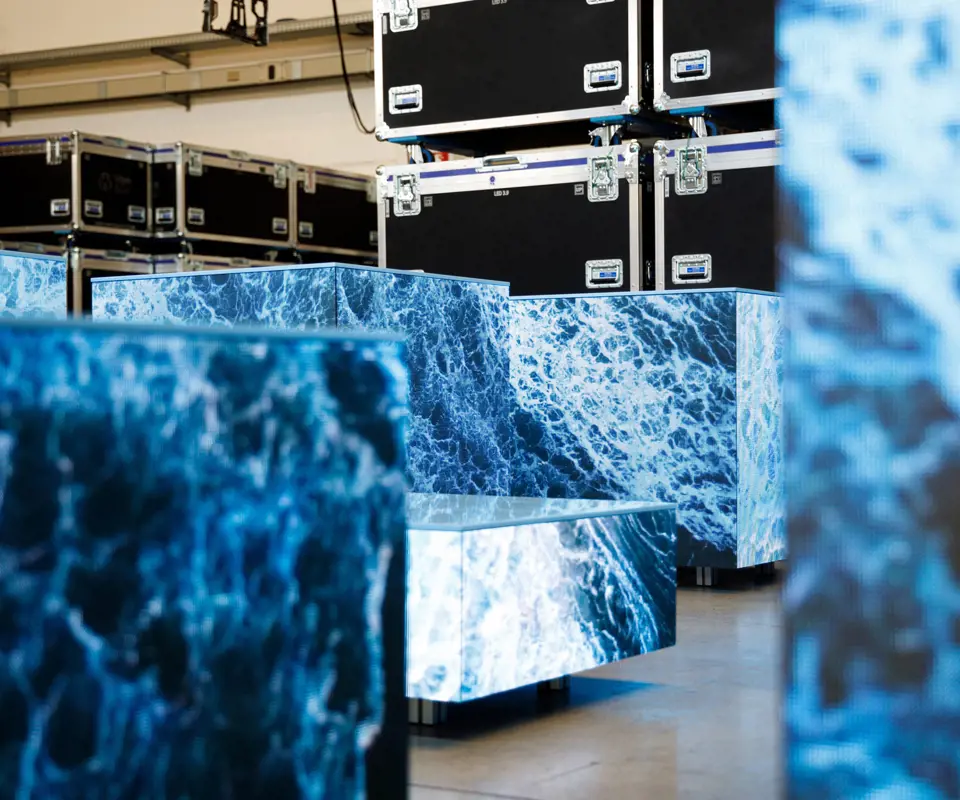

Where you can use our products

Services

Planning

Our team of architects, designers and technicians can integrate and digitalise your projects through our screens, creating furnishing elements that blend in with the surrounding environment, based on in-depth knowledge of the product and its control systems, to guarantee a very high quality yield.





Discover more

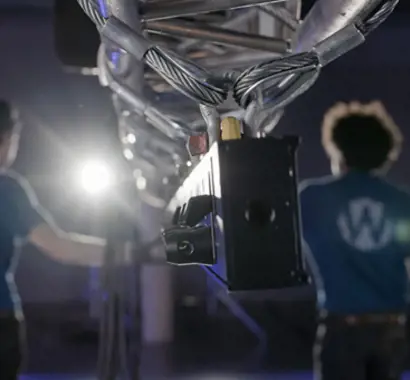

Installation

Our specialist technicians, through years of experience in the field, test every single module before installing the screens.



The actual phase of LED wall assembly consists of inserting all the cabinets inside the load-bearing structure created, ensuring precise alignment of the individual components. The wiring ensures electrical continuity and the correct flow of data in the various modules to compose the general image.



Once the LED wall is mounted, we proceed with the technical checks.





Discover more

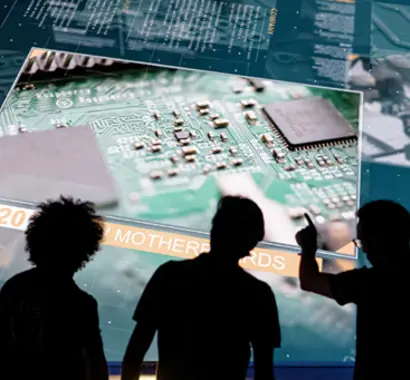

Training

The courses are aimed at anyone who wants to approach the world of LED screens and at professional operators who wish to increase their knowledge and technical skills.





Discover more



Repairs

We ensure a rapid support and repair service thanks to the presence of specialist technicians at our head office. We also guarantee the presence of an emergency team, 7 days a week, for any problems with the system.





Discover more



Content Creation

Our creative teams are available to create from scratch, or adapt, video content and their audio integration to offer a #beyondimaginable experience.





Discover more
