Copertina PH 16 APPESO 007 Alt

Materia 1.9

BRIGHTNESS
1500 Nits
TECHNOLOGY
IMD Miniled
REFRESH RATE
> 7680 Hz (16 scan)
Download the brochure



Thanks to the patented Miniled 4 in 1 technology, Materia redefines the viewing experience.

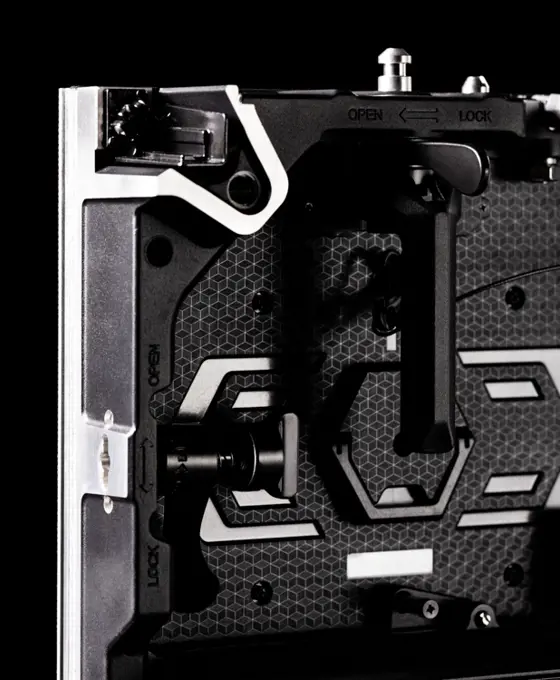

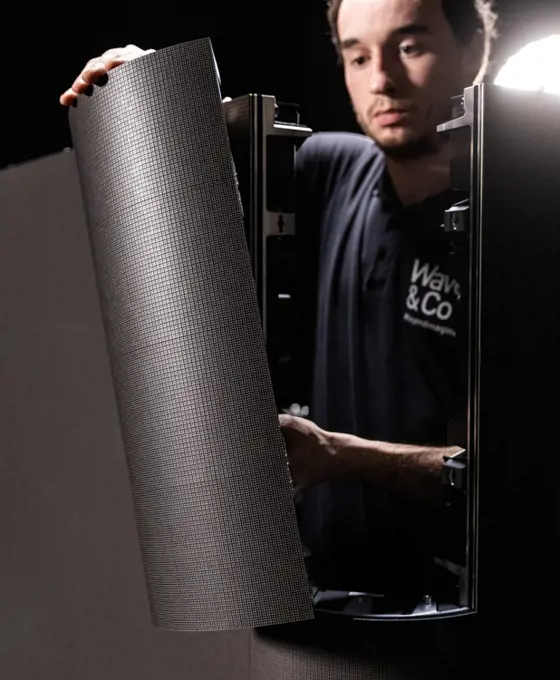

Innovative design with interchangeable and magnetic modules, including the innovative curve corner, front and rear maintenance capable of guaranteeing rapid intervention on any occasion.



This technology allows for very deep blacks and an unrivalled 30,000:1 which, combined with the high 7680 Hz scan 16 refresh rate, guarantees high visual performance, both with the naked eye and in the camera, making Materia perfect, even for virtual production projects.

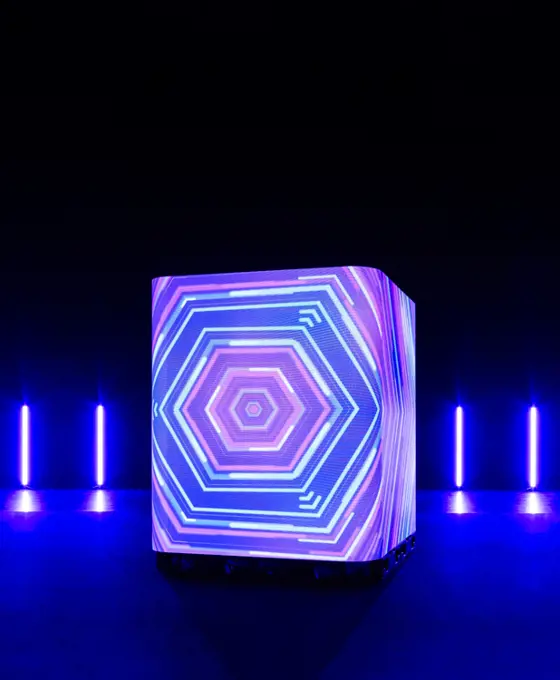

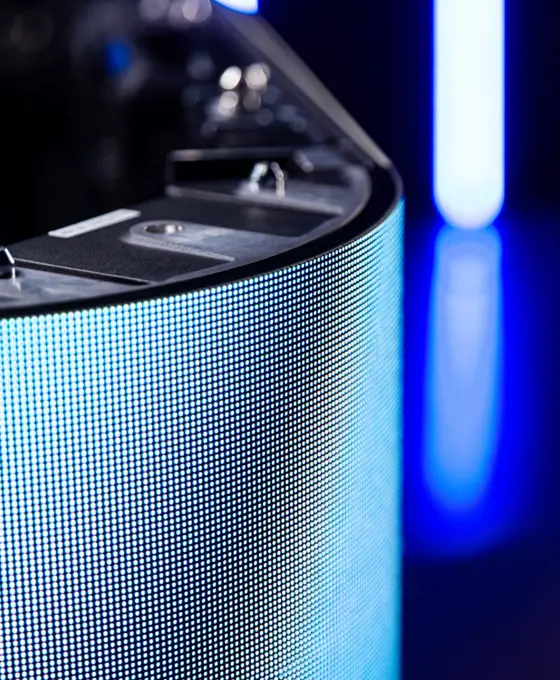

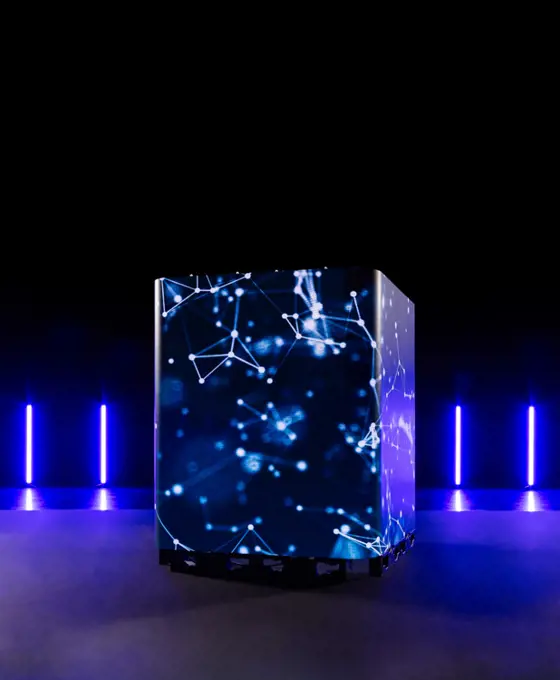

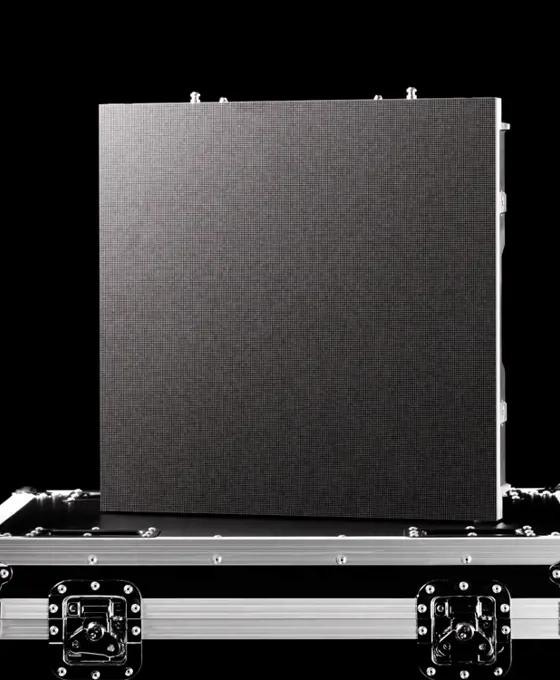

Materia 1.9, thanks to its curved corner cabinet enables you to create polygonal shapes for an uninterrupted viewing experience.

Available for rental

Technical data





Pitch

1.95

Technology

Miniled IMD

Module resolution

128 x 128 pixel

Module size

250 x 250 mm

Cabinet size

500 x 500 mm

Ratio

1:1

Cabinet resolution

256 x 256 mm

Pixel density

262.144 pixel/m2

Material

Die-cast aluminum

Weight

8,8 kg

Thickness

74 mm

Maintenance

Frontal and rear

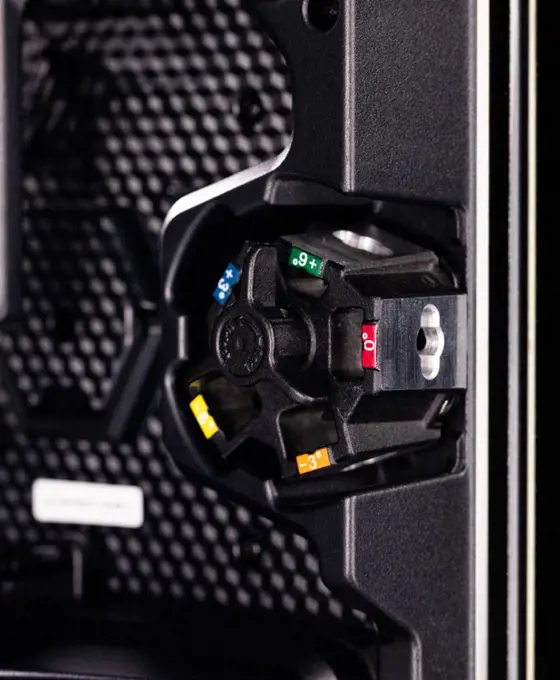

Bending angle

+/- 0°, 3°, 6°

Brightness

1500 Nits

View angle (H/V)

160° / 140°

Grey scale

16 bit

Number of color

218 trilioni

Contrast ratio

30000:1

Refresh rate

> 7680 Hz (16 scan)

Power peak

528 W

Average consumption

200 Wh/m2

Life span

> 100.000 ore

IP rating (front/rear)

20/20

Main features



Easy And Precision In Assembly





Front And Rear Maintenance

Magnetic Adjustment

Perfect Alignment

Perfect Camera Visual Rendering

On-site, remote and cloud management

1 / 6

Illuminate your brand

Through Wave&Co LED screens you can offer your customers a #beyondimaginable vision experience.



Contact us for further information





Services

Planning

Our team of architects, designers and technicians can integrate and digitalise your projects through our screens, creating furnishing elements that blend in with the surrounding environment, based on in-depth knowledge of the product and its control systems, to guarantee a very high quality yield.





Discover more



Installation

Our specialist technicians, through years of experience in the field, test every single module before installing the screens.



The actual phase of LED wall assembly consists of inserting all the cabinets inside the load-bearing structure created, ensuring precise alignment of the individual components. The wiring ensures electrical continuity and the correct flow of data in the various modules to compose the general image.



Once the LED wall is mounted, we proceed with the technical checks.





Discover more



Training

The courses are aimed at anyone who wants to approach the world of LED screens and at professional operators who wish to increase their knowledge and technical skills.





Discover more



Repairs

We ensure a rapid support and repair service thanks to the presence of specialist technicians at our head office. We also guarantee the presence of an emergency team, 7 days a week, for any problems with the system.





Discover more



Content Creation

Our creative teams are available to create from scratch, or adapt, video content and their audio integration to offer a #beyondimaginable experience.





Discover more
